Dynamix IMP-828 / IMP01-G04
28/10-ports L3 Managed Gigabit Ethernet Switch
Specification | Front panel | Ordering information


IMP01-G04


   Dynamix IMP-828/IMP01-G04 L3 Ethernet Switch delivers high quality, wire-speed L3 routing performance, advanced features such as powerful VLAN operation, Police-based traffic manage & security, and intelligent management design, to fulfill different application scenario. It provides the scalability, flexibility & reliability for large network structure, and is also an ideal solution of L3 routing off-load for core network.
User's manual

Quick start


24 Gigabit Copper ports plus 4 SFP ports 100FX or 1000BaseF (Dynamix IMP-828)
6 Gigabit Copper ports plus 2 SFP ports 100FX / 1000BaseTx + 2 SFP ports Combo (Dynamix IMP01-G04)
9K Jumbo frames
L3 wire-speed switching
Network redundant LACP, Spanning tree STP, RSTP & MSTP, and Ring fail -over protection (< 20 ms @ 250 switches, single and
multiple rings)
Advanced VLAN operations: IEEE 802.1ad/QinQ VLAN, VLAN tag add/remove/replace
Private VLAN, port-based /tag-based/protocol-based VLAN
Multicasting: IGMP v1/v2/v3, proxy & snooping
Security: IEEE 802.1x authentication, RADIUS & TACACS+ AAA
Policy-based traffic control engine for actions of Deny, Allow, Queue mapping, rate limit, mirror, or CoS remark on any combination of specific Layer -2 /Layer- 3 / Layer-4 patterns
QoS (SPQ, WRR, SPQ + WRR): Hierarchical per-port, per queue shaping & scheduling with bandwidth management
CLI, Web-based, SNMP v1/v2/v3 management interfaces
Police-based stream mirroring for debugging
Redundant, dual DC power inputs; AC input power option
Back to Top



Ethernet Interface 24 Gigabit Copper ports plus 4 SFP ports 100FX or 1000BaseF (SX/LX/LH) - (Dynamix IMP-828)
6 Gigabit Copper ports plus 2 SFP ports 100FX plus 2 1000BaseTx + 2 SFP ports Combo (Dynamix IMP01-G04)
Operating mode Store and forward, L2/L3 wire-speed/non-blocking switching engine
MAC addresses  8K
Jumbo frames  9K Bytes
Copper RJ45 Ports 10/100/1000 Mbps speed auto-negotiation; MDI/MDIX Auto-crossover Full and half duplex Support straight or cross wired cables
SFP (pluggable) Ports  Gigabit fiber multimode, fiber single mode, fiber long-haul single mode 100/1000BaseF (SX/LX/LH)
Fiber port connector  LC typically for fiber (depends on module)
Fast failover protection rings  Link loss recovery < 20ms Single & Multiple rings supported
Spanning Tree Protocol IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
BPDU forwarding and filtering
Port Trunk with LACP Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
Flow control  IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex)
Max VLANs  128
VLAN Types Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE
802.1ad Double Tagging (Q in Q)
Private VLAN
VLAN operations  Attach/Remove/Replacement VLAN tag
MVR (Multicast VLAN Registration)  Yes
Multicast protocols IGMP v1, v2 and v3 with up to 256 multicast groups
IGMP snooping and querying
Immediate leave and leave proxy
Throttling and filtering
Policy-based access control engine  Policy/profile-based Access Control List (ACL)
Flexible combination of well-known fixed Layer 2/3/4 fields:
- VLAN ID, Source/Destination MAC address, EtherType
- Source/Destination IP address, IP protocol number
- UDP or TCP, Source/Destination port number of TCP/UDP
- DSCP or ToS value
Actions per rule: Deny, Allow, Queue mapping, rate limit, mirror, CoS remark
Max number of profiles per switch: 10
Max number of rules per profile: 16
Number of queues per port  8
Scheduling schemes  SPQ, WRR, SPQ + WRR
Traffic Shaper  Hierarchical per port and per queue shaping & scheduling with bandwidth managemen
Traffic Policer Ingress rate limit in 1K bps granularity
Port security IP and MAC-based Access control
Policy-based Access control
IEEE 802.1x authentication Network Access Control
RADIUS and TACACS+ AAA (Authentication, Accounting and Authorization)
Storm Control  Multicast/Broadcast/Flooding Storm Control on per port and per VLAN basis
User Management interfaces Cisco-like CLI (command line interface)
WEB-based Management
SNMP v1, v2c, v3
Telnet (5 sessions)
Management Security  HTTPs, SSH
Radius Client for Management (*pending)
TACACS+ Client for Management (*pending)
Upgrade & Restore TFTP/FTP for Configuration Import/Export,
TFTP/FTP for Firmware Upgrade
Diagnostic  Syslog
Policy-based stream mirroring
Ethernet Copper connection diagnostic tool
NTP/SNTP  Yes
L3 routing  Static routing, RIPv1/RIPv2, OSPF, DVMRP (*pending), PIM-DM (*pending)
VRRP

Power
Power input  DC: Redundant Input Terminals
Input voltage range12-58 VDC or
100/240 VAC, 50Hz ~ 60Hz
Reverse power protection  Yes

Indicators
Power Status indication  Indication of power input status
Ethernet port indication  Link & Speed

Environmental and Compliances
Operating temperature range-40 to +75°C (cold startup at -40°C)
Storage temperature range  -40 to +85 °C
Humidity  5 to 95% RH (non-condensing)
Vibration, shock & freefall  Vibration: IEC60068-2-6
Shock: IEC60068-2-27
Free Fall: IEC60068-2-32
Certification compliance  CE/FCC/UL-508
EMI  Radiated Emission: CISPR 22, EN55022 Class A
Conducted Emission: EN55022 Class A
EMS ESD: IEC61000-4-2
Radiated RF (RS): IEC61000-4-3
EFT: IEC61000-4-4
Surge: IEC61000-4-5
Conducted RF (CS): IEC61000-4-6
RoHS and WEEE  RoHS (Pb free) and WEEE compliant
MTBF  > 25 years

Mechanical
Ingress protection  IP30
Dimension
Weight
Installation option  19’’ rack mounting

Back to Top

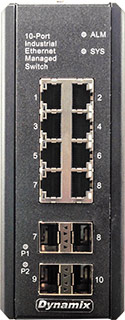

DYNAMIX IMP01-G04

DYNAMIX IMP01-G04 Top
Back to Top

DYNAMIX UM-SE Series - 2BASE-TL EFM Network Extenders

DYNAMIX IMP-828 28-ports Industrial managed L3 Gigabit Ethernet Switch: 24 * 10/100/1000BaseT(X) and 4 * 100/1000BaseSFP ports, wide operating temperature range -40 to +75°C
DYNAMIX IMP01-G04 10-ports Industrial managed L3 Gigabit Ethernet Switch: 6 * 10/100/1000BaseT(X) and 2 * SFP ports 100/1000Base / 1000BaseTx + 2 SFP ports Combo, wide operating temperature range -40 to +75°C
