DYNAMIX 3000
G.SHDSL TDM Solution
Specification | Front panel | Back panel | Ordering information
DYNAMIX 3000 G.SHDSL TDM Solution

View Larger Picture

 Dynamix 3000 offers different ways to connect customers over high-speed DSL services, either with a G. 703 or with a multi-protocol serial DCE port or Ethernet port.

The multi-protocol serial DCE port can be configured as a V.35, X.21, RS-449 and RS-530 connection. The G.703 interface will carry 2.048Mbps/1.544Mbps and the multi-protocol serial DCE port transfers data up to 2313kbps.

Dynamix 3000 is equipped with an adaptive auto rate capability that identifies the maximum line rate supported by the copper loop. This powerful automatic configuration capability makes installation and service provisioning simple and painless. Further flexibility is provided by the ability to manually set the maximum speed at different levels for different customer-tailored service offerings.
 User's manual
        0.8 Mb

Quick start

• Meets ITU-T and ETSI Standards
• Compliance with ITU-G.703, G.704, G.706, G.732 and G.823
• Single-pair operation - uses only pair with a maximum user data rate of 2.304Mbps or two-pair operation up to 4.6Mbps
• Each line card can support up to two channels for one pair (two-wire) application on E1/Datacom solution
• N x 64k rate selectable from 64kbps to 2.304Mbps
• E1 and fractional E1 capable
• Menu oriented craft screens for ease of use
• Optional SNMP network management system card (under development)
• Remote line loopback
• Downloadable software for easy upgrade
• Central solution in standard 19 inch rack
• Up to 13 cards can be installed
• High density and compact, 4U high
• Hot swapping of cards and redundant power supplies (optional)
• All interface connectors on the rear panel
• Different power source option, AC or DC -48V
• Supports Remote software upgrade(optional)
Back to Top

SHDSL Interface
 Line code : 16 level Trellis coded PAM
 Line data rate : User selectable from 64kbps to 2.304Mbps
 Support : ANSI (Annex A) and ETSI (Annex B)
  Support wetting current : 4mA-20mA and alarm on failure
 Compliance: ITU-T G.991.2

Datacom Interface (under development)
User selectable as : V.35, RS-449, RS-530, X.21
Data Rate : 64kbps to 2304kbps
Connector : D25F (adapters available)
  Timing : Internal, External, and Recovery

Ethernet Interface
 Supports 10/100Base-T auto sensing half/full duplex
  Complied with IEEE 802.3/IEEE 802.3u
  Operates as a self-learning bridge in transparent mode
  Supports up to 128 MAC learning addresses
  Supports bridge filter function

E1 Interface
 Line code: HDB3/AMI
 Data rate: 64kbps to 2048kbps
 Operation: full or fractional
 Impedance: 120 ohms balanced / 75 ohms unbalanced
 Framing: structured with or without CRC-4 or unstructured
 Timing: internal, and G.703
 Compliance: ITU-T G.703, G.704, G.706, G.821, G.823, G.826, CTR12
 Transmit level:
  - Pulse amplitude: Nominal 2.37V+10% for 75 ohm / Nominal 3.00V+10% for 120 ohm
  - Zero amplitude: +0.1V
 Transmit frequency tracking:
  - Internal timing :+/- 30ppm
  - Loopback timing :+/- 50ppm
  - External timing :+/- 100ppm
 Jitter performance : ITU-T G.823
  Interface connections : BNC for unbalanced, 5 pin wire connector for balanced

Performance
 SHDSL PM : ES-crc, SES-crc, UAS, LOSW seconds
 E1 PM : ES, SES, UAS seconds
 Current 15-minute period and 96 previous 15-minute periods of SHDSL and E1 performance parameters
 Current 24-hour period and 7 previous 24-hour periods of SHDSL and E1 performance parameters

Diagnostic
 E1 line loopback / Local SHDSL loopback / Remote SHDSL loopback / Remote payload loopback

LEDs indication
 E1 : PWR, SHDSL, FE1, LOF, LOS, TEST, LOOP, ALARM, and FAR ALARM
  V.35 : PWR, SHDSL, TD, RD, CTS, TEST, LOOP, ALARM, and FAR ALARM
  Ethernet : PWR, SHDSL, 10M/ACT, 100M/ACT, COL, TEST, LOOP, ALARM, and FAR ALARM

Back to Top

Gauge
Rate
 26AWG 24AWG
 512Kbps 5,7 km 6,5 km
 1024Kbps 4,8 km 5,5 km
 2048Kbps 3,8 km 4,6 km
 2304Kbps 3,4 km 4 km


Back to Top

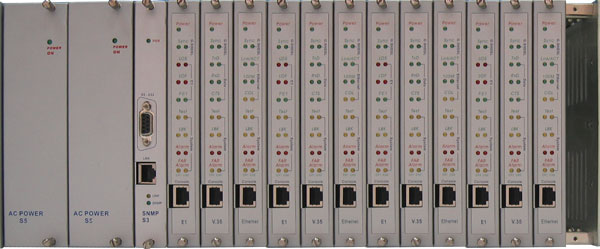

DYNAMIX 3000 G.SHDSL TDM Solution
Back to Top

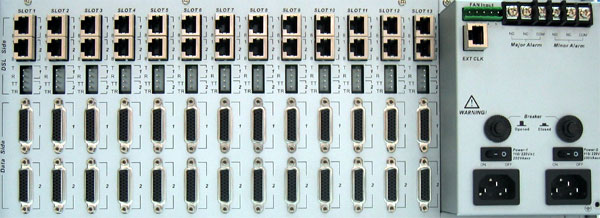

DYNAMIX 3000 G.SHDSL TDM Solution
Back to Top

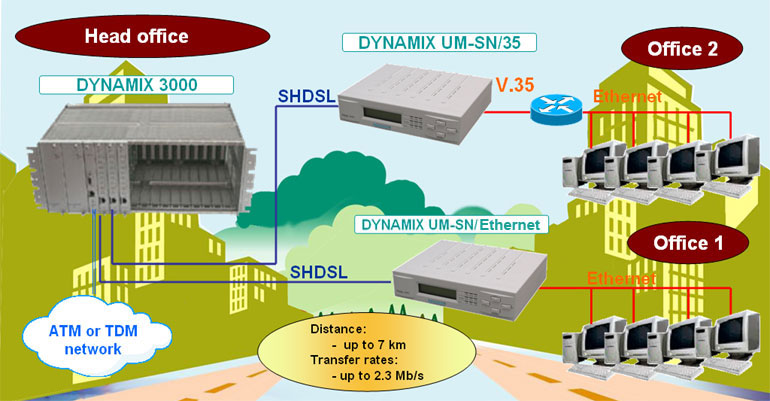

Connection with G.SHDSL rackmount DYNAMIX 3000

Вверх
Dynamix 3000 Series - 19" Chassis G.shdsl Rack Mount
Master Unit: Chassis
Dynamix 3200-AA 19" 4U Rack mount Chassis for AC+AC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without AC power card, SNMP card, Line cards
Dynamix 3200-AD 19" 4U Rack mount Chassis for AC+DC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without AC power card, SNMP card, Line cards
Dynamix 3200-DD 19" 4U Rack mount Chassis for DC+DC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without SNMP card, Line cards
Cooling FAN for Dynamix 3000 Series
Dynamix 3200-CF 19" 1U Cooling FAN
Power modules for Dynamix 3000 Series ( Redundant power protect available )
Dynamix 3210 AC 110V/ AC220V Power Board
Optional Networking management module for Dynamix 3000 Series
Dynamix 3220 SNMP I/F card with MIB
Line cards for Dynamix 3000 Series
Dynamix 3000 (TDM Base) G.shdsl ( 2Loop / 2W) -E1( 2 Channels) Line Card
Dynamix 3010 (TDM Base)  G.shdsl (2Loop / 2W) -V.35( 2 Channels) Line Card
Dynamix 3020 (TDM Base) G.shdsl (2Loop / 2W) -10/100 Base-T(2 Channel) Line Card
Optional Cables
Dynamix 3000-C1 E1 adapter cable : HD26 Male to 1 x RJ45 Female
Dynamix 3000-C2 E1 adapter cable : HD26 Male to 2 x BNC Female, 0.2 meter
Dynamix 3010-C1 V35 adapter cable : HD26 Male to 1 x MB34 Female, 0. 2 meter
Dynamix 3020-C1 Ethernet adapter cable : HD26 Male в 1 x RJ45, 2 meter
Back to Top


Also see the products of this group:
DYNAMIX UM SN/703 - G.SHDSL modem G.703 192kbps to 2.304Mbps N x 64kbps (N=3 до 36)
DYNAMIX UM SN/35 - G.SHDSL modem V.35 192kbps to 2.304Mbps N x 64kbps (N=3 до 36)
DYNAMIX UM SN/L - SHDSL modem with Ethernet interface 192kbps to 2.304Mbps N x 64kbps (N=3 до 36)
DYNAMIX UM-S/SF - G.shdsl Router  with 1 LAN Port and Firewall (UM-SF) (2-wire)
DYNAMIX UM-S4/S4F - G.shdsl Router with 4 LAN Ports and Firewall (UM-S4F) (2-wire)
DYNAMIX UM-SB/SFB - G.shdsl.Bis Router  with 1 LAN Port and Firewall (UM-SFB) (2-wire)
DYNAMIX UM-S4B/S4FB - G.shdsl.Bis Router with 4 LAN Ports and Firewall (UM-S4FB) (2-wire)
DYNAMIX UM-S4B/4w - G.shdsl.Bis Router with 4 LAN Ports  (4-wire)
DYNAMIX UM-S4FB/4w - G.shdsl.Bis Router with 4 LAN Ports and Firewall (4-wire)
DYNAMIX UM-SE - 2BASE-TL EFM Network Extender
DYNAMIX 3000 G.SHDSL TDM Solution
