DYNAMIX HP-31/S
|
|
HCNA
(HomePNA 3.1 over Coax) to Ethernet Bridge |
|
|
|
|

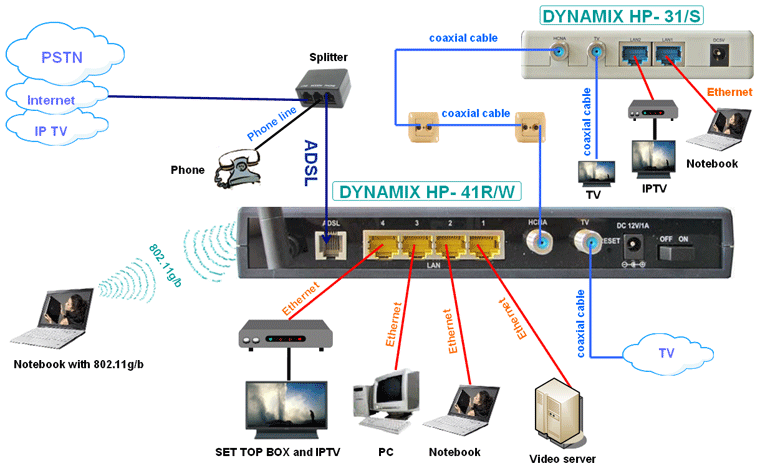

DYNAMIX HP-31/S enables You to set-up your Private Network at Home with your Existing Coaxial Cable. No additional Network wiring is necessary. You may just Find a Coax Connector in the wall, put the coaxial plug into the connector, you can then be ready to access the broadband Internet
(through ADSL2+ Firewall Router DYNAMIX HP-41R or
DYNAMIX HP-41R/W). No extra utility is needed. No setting, just link. Simply Plug &
Play.
|
User's manual
Quick start
|
DYNAMIX HP-31/S including guaranteed quality of service
(QoS), low cost, robust performance, and the ability to operate simultaneously over coax
cables.
Via the RJ-45 Ethernet Ports, You can connect DYNAMIX
HP-31/S with the Ethernet - Interfaced Devices such as STB, Camera Server, PC, or Switch/Hub. The High speed of 128Mbps will bring you to enjoy the “video-on-demand” or
“multimedia-on-demand” services.
With DYNAMIX HP-31/S you can even quickly extend or flexibly change the existing LAN environment.
|
|
|
|
| • |
Using existing coaxial cable to build a home network |
| • |
Shares high speed Internet access and streaming video |
| • |
1 port 128 Mbps connection compliant with HomePNA
3.1 over Coax (HCNA) standard |
| • |
1 port for TV |
| • |
2 Standard 10/100 Base TX Fast Ethernet ports for connecting to Ethernet or cable modem |
| • |
“Plug & Play” |
| • |
10/100 Mbps Auto-Negotiation Support |
| • |
QoS Priority Mapping Support and IP TOS |
| • |
Distance up to 1200 m over RG 59 wires |
| • |
Filter Built-in to Eliminate Noise from TV |
| • |
Compact Size Design |
 Back to Top
|
|
|
|
|
| Networks standards |
| | HomePNA 3.1 over Coaxial Cable (HCNA) |
| | IEEE802.3 |
| | IEEE802.3u |
| | IEEE802.3x |
| Connectors |
| | Ethernet : Two RJ-45 Ports |
| | HCNA : Two F-Type Female Coax Connectors, One for HCNA, the Other One for TV |
| Transmission Power/Spectrum |
| | 0 +/- 1 dBm /
4~20 MHz |
| Transmission Speed/Distance |
| | Up to 128Mbps |
| | Up to 4000 Feet
(-176dBm/Hz Noise
Floor) |
| Quality of Service |
| | Priority Queue Based on 802.1p |
| | TAG VLAN Pass Through |
| | Quaranteed QoS based on HomePNA
3.1 Parameterized QoS |
| Fast Ethernet Interface |
| | 10/100Mbps |
| | MDI/MDI-X Auto Crossover |
| Indicators |
| | "Power" LED |
| | Ethernet "Link/Activity" LED x 2 |
| | HCNA "Link/Activity" LED |
| | "SyncMode" LED |
| Power Requirement |
| | External Power Supply : 5VDC |
| | Power Consumption <
4 Watt |
| EMI/EMC |
| | Comply with FCC Part15 |
| | Comply with CE |
| | Comply with UL/cUL and CSA |
| Environmental Conditions |
| | Operating Temperature : 0 C ~ 40 C (32 F ~ 104 F) |
| | Storage Temperature : -10 C ~ 65 C (14 F ~ 149 F) |
| | Operating Humidity : 10% ~ 95%, Non-Condensing |
| | Physical Dimension:
114mm (W) x 67mm (D) x 25mm (H) |
| | Weight: about
120 g |
|
|
Back to Top
|
|
|
|
|
|
|
|
|
|
| DYNAMIX HP-31/S |
HCNA (HomePNA 3.1 over Coax) to Ethernet Bridge |
|
|
Back to Top |
|
|
