DYNAMIX HP- 51/M
HomeCNA3.1 Coax MDU Master Bridge
Specification | Front panel | Back panel | Application | Ordering information

DYNAMIX HP- 51/M  HomeCNA3.1 Coax MDU Master Bridge.

View Larger Picture

   The HomeCNA3.1 Coax MDU Master Bridge DYNAMIX HP- 51/M Enables You to Start the Triple-Play Services to a Small Scale Apartment Building.
   No Additional Network Wiring is Necessary. You may just Use the Existing Coax Wiring in the MDU Building, and be Ready to Provide Broadband Services to Subscribers.
   Low Initial Deployment Cost DYNAMIX HP- 51/M Compare to the High Cost  xDSL Solutions, Suitable to Small Scale Building with Limited Subscribers.
   Via the RJ-45 Ethernet Ports, Connect the MDU Master DYNAMIX HP- 51/M with Broadband Access Devices such as Fiber Media Converter and ADSL/Cable Modem.
   Remote Management Function in DYNAMIX HP- 51/M Help to Ease the Support.
User's manual
       5.7 Mb
Quick start
        0.35 Mb

Coax Port as Distribution Backbone by Using Existing Coaxial Cable
Two 10/100M Fast Ethernet Ports for FTTx, ADSL/Cable Modem
Distance up to 4000 Feet Over RG59 Cables
Filter Built-in to Eliminate Noise from TV/Antenna
Remote Web/Telnet/SNMP Configuration and Diagnosis
Secured and Isolated Communication
Provision/Denial of Service
Recovery from Firmware Upgrade Failure
Firmware Upgrade for End-Points (EP)
QoS Priority and Mapping Support
Back to Top

Networks standards
 HomePNA3.1 over Coaxial Cable (HCNA)
  IEEE802.3
  IEEE802.3u
  IEEE802.3x

Connectors
 Ethernet : Two RJ-45 Ports
  HCNA : Two F-Type Female Coax Connectors. One for HCNA, the Other for TV or Antenna.

Transmission Power/Spectrum
 0 +/- 1 dBm, 4~20MHz or 12~28MHz

Transmission Speed/Distance
 Up to 128Mbps (112Mbps for 12~28MHz)
  Up to 4000 Feet (-176dBm/Hz Noise Floor)

Quality of Service
 Priority based on IEEE802.1p/IP TOS/Diffserv and TCP/UDP Port
  Quaranteed QoS based on HomePNA3.1 Parameterized QoS

Network Management
 Web/SNMP Configuration and Firmware Upgrade
  Recovery from Firmware Upgrade Failure
  Diagnosis of HCNA Interface
  Firmware Upgrade for End-Points(EP)
  Secured/Isolated Communication between End-Points(EP)
  Provision/Denial of Service
  Subscriber Host Number Control

Fast Ethernet Interface
 10/100Mbps
  MDI/MDI-X Auto Crossover

DIP Switch
 Reserved

Reset Button
 Reset Device or Force to Factory Setting

Indicators
 "Power" LED
  "LAN1", "LAN2" LEDs for Ethernet
  "Link/Act", "SyncMode", "Diagnosis" LEDs for HCNA

Power Requirement
 External Power Supply : 5VDC
  Power Consumption < 4Watt

EMI/EMC
 Comply with FCC Part15
  Comply with CE

Environmental Conditions
 Operating Temperature : 0 C ~ 55 C (32 F ~ 131 F)
  Storage Temperature : -10 C ~ 65 C (14 F ~ 149 F)
 Operating Humidity : 10% ~ 95%, Non-Condensing
 160mm (W) x 105mm (D) x 28mm (H)
 Weight: about 260g

Back to Top

DYNAMIX HP- 51/M  HomeCNA3.1 Coax MDU Master Bridge. Front panel
Back to Top

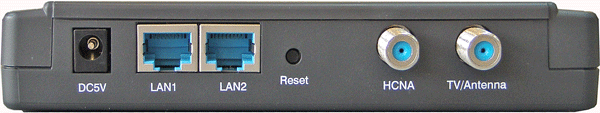

DYNAMIX HP- 51/M  HomeCNA3.1 Coax MDU Master Bridge. Back panel
Back to Top

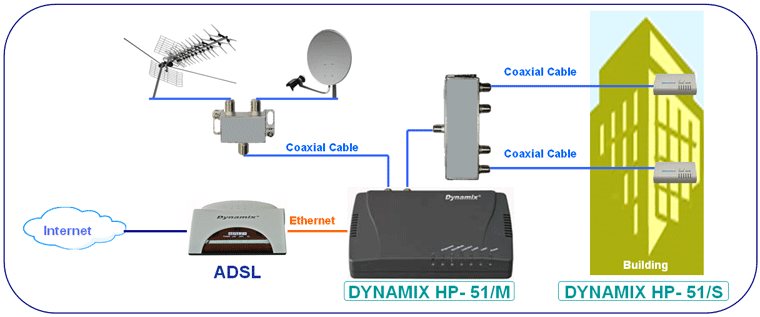

DYNAMIX HP- 51/M  HomeCNA3.1 Coax MDU Master Bridge. Application



Back to Top
 DYNAMIX HP- 51/M  HomeCNA3.1 Coax MDU Master Bridge
