DYNAMIX HP-30C
|
| HomePNA 3.0 (128 Mbps) -
Ethernet adapter (2 ports 10/100 Base-TX) |
|
|
|
|
|
|
|
|
| • |
“Plug and Play” doesn’t require additional drivers and programs |
| • |
Simultaneous data and voice transmission |
| • |
Simple Home and Ethernet networks docking |
| • |
Qos Support |
| • |
2 ports 10/100Base-Tx Auto-negotiating Ethernet for Link Router or Modems |
| • |
Transmission speed up to 128
Mbps, it is more than 2000 times higher than of 56K modems |
| • |
Operating distance HomePNA – up to 600m |
| • |
Minimal dimensions for convenient placement |
 Back to Top
|
|
|
|
|
| Network Standards |
| | HomePNA V3.0 |
| | IEEE802.3 |
| | IEEE802.3u |
| | IEEE802.3x |
| Operating System |
| | Without Limitation |
| Connectors |
| | Ethernet : Two RJ-45 Ports |
| | HomePNA : Two RJ-11
Ports, One for HomePNA, the Other One for Phone-Line Bypass |
| DIP Switch |
| | Two DIP Switches, "1" for Transmission Priority Setting, and "2" for Transmission Speed Setting |
| Transmission Speed |
| | Up to 128 Mbps |
| Transmission Distance |
| | Up to 600m |
| Interface Speed |
| | 10/100Mbps Fast Ethernet |
| Indicators |
| | "Power" LED |
| | "HomePNA
Link/Activity" LED |
| | "Ethernet
Link/Activity" LED |
| Power Requirement |
| | External Power Supply : Input 100 ~ 240 VAC, 50/60HZ ; Output 5 VDC |
| | Consumption : < 6 Watts |
| EMI/EMC |
| | Comply with FCC Part 15 |
| | Comply with CE CISPR |
| | Comply VCCI |
| PTT Approval |
| | Comply with FCC Part 68 |
| | Comply with JATE |
| Environmental Conditions |
| | Operating Temperature : 0°C~ 40°C(32°F ~ 102°F) |
| | Storage Temperature :-10°C~ 65°C(14°F ~149°F) |
| | Operating Humidity : 10% ~ 95%, Non-condensing |
| Physical Dimension |
| | 114mm (W) x 67mm (D) x 25mm (H) |
|
|
Back to Top
|
|
|
|
|
|
|
|

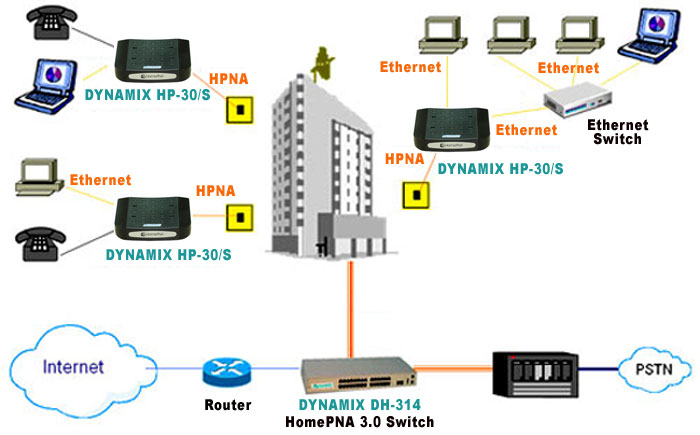

Example of usage DYNAMIX HP-30C together with DYNAMIX DH-314 in a building (office)
|
Back
to Top
|
|
|
|
| DYNAMIX HP-30C |
HomePNA 3.0 (128 Mbps) - Ethernet adapter (2 ports 10/100 Base-TX) |
|
|
Back to Top |
|
|
