DYNAMIX HP-30 Coax New!
|
| HCNA
(HomePNA 3.0 over Coax) to Ethernet Bridge connects any Ethernet device to high speed access |
|
|
|
View Larger Picture
|
This equipment including guaranteed quality of service (QoS), low cost, robust performance, and the ability to operate simultaneously over both phonelines and coax cables.
Dynamix HP-30 Coax enables You to set-up your Private Network at Home with your Existing Coaxial Cable. No additional Network wiring is necessary. You may just Find a Coax Connector in the wall, put the coaxial plug into the connector, you can then be ready to access the broadband Internet. No extra utility is needed. No setting, just link. Simply Plug & Play.
Via the RJ-45 Ethernet Ports, You can connect Dynamix HP-30Coax with the Ethernet -Interfaced Devices such as STB, Camera Server, PC, or Switch/Hub. The High speed of 128Mbps will bring you to enjoy the “video-on-demand” or “multimedia-on-demand” services.
With Dynamix HP-30Coax you can even quickly extend or flexibly change the existing LAN environment. No Re-wiring more.
|
User's manual
Quick start
0. 15 Mb
|
|
|
|
| • |
Using existing coaxial cable to build a home network |
| • |
Shares high speed Internet access and streaming video |
| • |
1 port 128 Mbps connection compliant with HomePNA 3.0 over Coax (HCNA) standard |
| • |
2 Standard 10/100 Base TX Fast Ethernet ports for connecting to Ethernet or cable modem |
| • |
“Plug & Play” |
| • |
10/100 Mbps Auto-Negotiation Support |
| • |
QoS Priority Mapping Support |
| • |
Distance up to 1200 m over RG 59 wires |
| • |
Filter Built-in to Eliminate Noise from TV |
| • |
Compact Size Design |
 Back to Top
|
|
|
|
|
| Networks standards |
| | HomePNA 3.0 over Coaxial Cable (HCNA) |
| | IEEE802.3 |
| | IEEE802.3u |
| | IEEE802.3x |
| Connectors |
| | Ethernet : Two RJ-45 Ports |
| | HCNA : Two F-Type Female Coax Connectors, One for HCNA, the Other One for TV |
| Transmission Power/Spectrum |
| | +3 dBm/4~21MHz |
| Transmission Speed/Distance |
| | Up to 128Mbps |
| | Up to 4000 Feet(-176dBm/Hz Noise
Floor) |
| Quality of Service |
| | Priority Queue Based on 802.1p and TOS |
| | TAG VLAN Pass Through |
| | Quaranteed QoS based on HomePNA 3.0 Parameterized QoS |
| Fast Ethernet Interface |
| | 10/100Mbps |
| | MDI/MDI-X Auto Crossover |
| DIP Switch |
| | To Select the Master of Sync Mode Operation |
| Indicators |
| | "Power" LED |
| | Ethernet "Link/Activity" LED x 2 |
| | HCNA "Link/Activity" LED |
| | "SyncMode" LED |
| Power Requirement |
| | External Power Supply : 5VDC |
| | Power Consumption < 5Watt |
| EMI/EMC |
| | Comply with FCC Part15 |
| | Comply with CE |
| | Comply with UL/cUL and CSA |
| Environmental Conditions |
| | Operating Temperature : 0 C ~ 40 C (32 F ~ 104 F) |
| | Storage Temperature : -10 C ~ 65 C (14 F ~ 149 F) |
| | Operating Humidity : 10% ~ 95%, Non-Condensing |
| | Physical Dimension:
114mm (W) x 67mm (D) x 25mm (H) |
| | Weight: about
120 g |
|
|
Back to Top
|
|
|
|
|
|
|
|
|
|

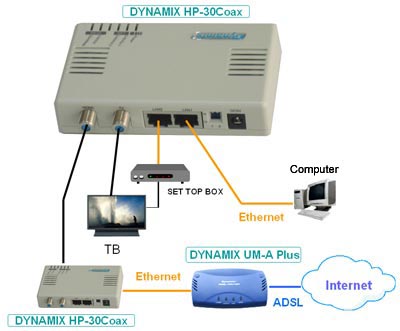

| DYNAMIX HP-30 Coax |
HCNA (HomePNA 3.0 over Coax) to Ethernet Bridge connects any Ethernet device to high speed
access. |
|
|
Back to Top |
|
|
