Dynamix -60km 10/100/1000WDM(A/B)
|
| WDM Gigabit Fiber Optic Media Converter 10/100/1000 М , single mode,
60 km |
|
|
View Larger Picture
|
Dynamix -60km 10/100/1000WDM(A/B) Gigabit WDM fiber optic media converter be used Ethernet's electric signal to transmit signal's electricity signal transceiver, the feature is adopt one fiber cable can receive and transmit signal in-phase, enhance one double transmit energy than existing optical fiber ,economized fiber cable's
source.
Dynamix -60km 10/100/1000WDM(A/B) are a self-adapted single-fiber dual-direction fiber optic media converter with 10/100/1000M. This Gigabit media converter support following standards: IEEE802. 3ab, IEEE802.3u, 10BaseT, 100BaseTX, 1000Base-TX, 1000Base-SX, 1000 Base-LX.
The wavelength for transmit and receive are difference, that why Dynamix -60km
10/100/1000WDM A media converter operates only in couple with Dynamix -60km
10/100/1000WDM B media converter.

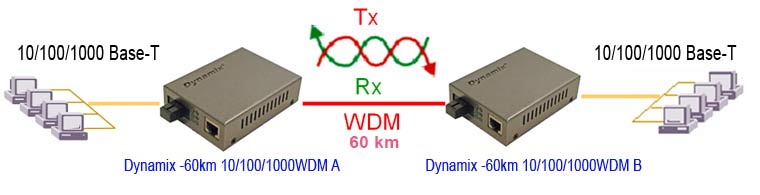

Dynamix -60km 10/100/1000WDM A singlemode single-fiber's transmit signal is wavelength 1550nm, receive signal is wavelength 1310nm and
Dynamix -60km 10/100/1000WDM B converter transmit signal is wavelength 1310nm, receive signal is wavelength 1550nm.
Dynamix -60km 10/100/1000WDM(A/B) media converter have one RJ-45 interface and one SC single-fiber interface, separate for use to connecting twisted-pair and fiber.
|
User's manual
Quick start
0.86 Mb
|
|
|
|
| • |
Optical port working mode is 10/100/1000M Full Duplex, LAN port is Auto Negotiation |
| • |
Support electricity port's 1000M mode or self-adapt mode's switch |
| • |
Supply Auto-MDI/MDIX automatic reverse |
| • |
Electricity port support auto-negotiation
function, auto-regulation transmit mode and transmit speed |
| • |
Connect type: SC |
| • |
Fiber type: singlemode |
| • |
Wavelength: 1310/1550nm or 1550/1310nm |
| • |
Typical distance: 60KM |
| • |
Min TX PWR: 0.0dBm |
| • |
Max TX PWR:2.5dbm |
| • |
Sensitivity:<-26dbm |
| • |
Link budget:26.0dbm |
| • |
Support storage transmit mode |
| • |
Prot supply Auto-MDI/MDIX automatic reverse |
| • |
Afford of state indicator, external
power(output 5V-50HZ 1A) |
 Back to Top
|
|
|
|
|
| Standards |
| | according with IEEE802.3ab/z, IEEE 802.3u, IEEE 802.3X, IEEE802.1Q, 10BASE-T, 100B ASE-TX, 1000BASE-TX, 1000Base-SX, 1000Base-LX |
| Protocol |
| | support TCP/IP PPPOE DHCP ICMP NAT protocol |
| Interface |
| | electric port RJ-45
fiber port: SC |
| Flow control mode |
| | full duplex adopt IEEE802.3X, |
| | half duplex adopt Backpressure's standard |
| Electricity port |
| | support auto-negotiation function, auto-regulation transmit mode and transmit speed
|
| Singlemode fiber |
| | 8/125,8.3/125,9/125µm |
| LED indicator |
| | POWER,
TX100,
FX100,
FX Link/ACT,
TX Link/ACT,
FDX |
| Working temperature |
| | 0~50 °C |
| Storage temperature |
| | -20~70 °C |
| Humidity |
| | 5%~90%(non-condensing) |
|
|
Back to Top
|
|
|
|
|
|
|
|
| Dynamix -60km
10/100/1000WDM(A/B)
|
WDM Gigabit Fiber Optic Media Converter 10/100/1000 М , single
mode, 60 km |
|
|
