FiberMix 3101-155
|
| STM-1 ADM and TM |
|
|
|
|
|
|
| • |
Provide 2 STM-1 interfaces, with options of either two individual STM-1 or 1+1 path
protection. |
| • |
Provide 63 E1 interfaces. |
| • |
Support 126x126 VC12 non-blocking cross
capability. |
| • |
It can be configured TM or
ADM. |
| • |
Support point-to-point, chain and ring
topology, provide 1+1 low path protection, rerouting time is less than 50ms. |
| • |
Clock mode supports holding,
locking, free running, complying with G.813 standard. |
| • |
It provides SNMP network interface and Console
interface, and ECC embedded channel, supports local and remote software on-line
upgrade. |
| • |
Provide alarm and performance
monitor. |
| • |
Provide local and remote loop-back function of optical interface and E1
interface, it is convenient for maintenance. |
 Back to Top
|
|
|
|
|
| Interface |
| | Network interface: provide 2 STM-1 interfaces, with options of
either two individual STM-1 or 1+1 path protection. |
| | Customer
interface: provide 63 E1 interface |
| Advanced |
| | Network Element Type: TM, ADM |
| | Management:
SNMP/Telnet/Console |
| | Network management
channel: in-band/out-of-band |
| | Update: support local and remote on-line
update. |
| | Performance
monitor: Support end-to-end performance test and local/remote fault
alarm, optical interface and E1 interface provide loop back function of line and
equipment, convenient for equipment maintenance. |
| Dimension and Weight |
| | Dimension: (W×D×H)440/266/44(mm) |
| | Weight <5kg |
| Power |
| | Power Supply: AC P.S: 180~260V, DC P.S: -48V/+24V |
| | Consumption: <15W |
| Ambience |
| | Temp: 0~50 degrees centigrade operating |
| | Humidity: 5~95% no condensing |
| Standard |
| | Compliant with
SDH/SONET interface standard: ITU-T G.707
E1 interface: ITU-T G.703/ G.823 |
|
|
Back to Top
|
|
|
|
|
Point-to-Point Application
Point-to-point:
FiberMix 3101-155
unit can be deployed in point-to-point application, connecting BTS and BSC over fiber, using existing SDH network
resource, to distance up to 120km.
FiberMix 3101-155
has network management function, administrator can manage and monitor the whole network through the network
platform. The solution is a cost-effective, user-friendly way for wireless
users.

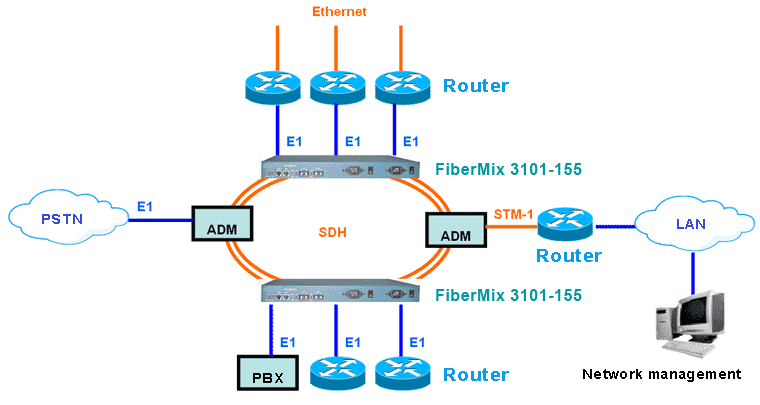

Ring topology network
In the ring topology network,
FiberMix 3101-155
is configured Add/Drop Multiplexer (ADM). Thanks to the flexibility
FiberMix 3101-155
offers. It can deliver 63E1s service to CPE over SDH and connect to router with E1
interface for internet access to multi tenants. It is an ideal solution for carrier to use existing SDH network
resource.
|
Back to Top
|
|
|
|
| FiberMix 3101-155-X/Y |
X
- means M, S1, S2, S3, SS13, SS15, SS23,SS25 (Fiber Optical Interface of STM-1)
Y - means power supply of AC/DC24/DC48 |
| CBL-E1-S-DB37F/8RJ45-2.5M |
Cable of DB37 female connector to 8 RJ45 120ohm balanced connector, 2.5m |
| CBL-E1-S-DB37F/16BNCM-2.5M |
Cable of DB37 female connector to 16 BNC 75ohm unbalanced male connector, 2.5m |
Fiber Optical Interface
| Part Number |
Connector
Type |
Wavelength
(nm) |
Power
(dBm) |
Receiver
Sensitivity(dBm) |
Typical Range(km) |
Attenuation
(dB/km) |
| -S1 |
DSC-RJ45 |
1310 |
-15~-8 |
<-34 |
0~25 |
0.5 |
| -S2 |
DSC-RJ45 |
1310 |
-5~0 |
<-34 |
10~60 |
0.5 |
| -S3 |
DSC-RJ45 |
1550 |
-5~0(DFB) |
<-36 |
15~120 |
0.25 |
| -SS13 |
SC/PC-RJ45 |
1310 |
-12~-3 |
<-30 |
0~25 |
0.5 |
| -SS15 |
SC/PC-RJ45 |
1550 |
-12~-3 |
<-30 |
0~25 |
0.5 |
| -SS23 |
SC/PC-RJ45 |
1310 |
-5~0 |
<-32 |
10~50 |
0.5 |
| -SS25 |
SC/PC-RJ45 |
1550 |
-5~0 |
<-32 |
10~50 |
0.5 |
|
|
Back to Top |
|
|
