FiberMix 303-GE, FiberMix 304-GE
|
| 1000Mbps Single Strand Fiber
(WDM) Copper to Fiber Media Converter |
|
|
|
|
|
|
| • |
Single strand fiber solution (WDM) for transmission of data through one fiber (optional) |
| • |
Slide-in module or pluggable into 1 -slot chassis as standalone unit. |
| • |
SNMP network management by installing agent card in chassis |
| • |
FiberMix 30x-GE media converters are highly reliable and cost-effective. They provide media conversion between Ethernet copper interfaces (1000Mbps) and Ethernet optical interfaces. In this way, the Ethernet transmission distance can be greatly extended. |
| • |
FiberMix 30x-GE can be used as a standalone unit or as a slide-in module installed into
FiberMix 001/002-4 or FiberMix 002-16 chassis (up to 15 units) for use at the central office. |
| • |
No limitation of length of data frame |
| • |
Modular units can be hot-swapped, with high reliability |
 Back to Top
|
|
|
|
|
| Standards |
| | IEEE 802.3z Gigabit Ethernet IEEE 802.3XAuto-negotiation |
| Interface |
| | 1000BaseTx (RJ45) and 1000BaseS/Lx 850 nm multimode, 1310 nm single mode, 1550 nm DFB single mode (SC connector). |
| Transmission distance |
| | Up to 100km, single strand fiber solution is up to 25km. |
| Dimensions |
| | 91(W)*25(H)*155(D) (mm) |
| Power |
| | Supply:
115/230VAC -48DC |
| | Consumption:
5W |
| Environment |
| | 0~+45 degrees Centigrade operating
5%~90% humidity non-condensing |
| Compliance |
| | CE certification |
|
|
Back to Top
|
|
|
|
|
|

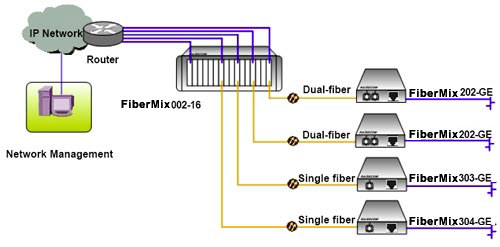

Point to multipoint application, extends Ethernet service over fiber optical infrastructure. Transmission distance can up to 100km. Modular units, including single mode and multimode modular units can be installed in
FiberMix 002-16 16-slot chassis at central site. All modular units at central site have the carrier grade network management capability. Through network management platform, all working mode of these modules can be configured. Remote units without the remote network management capability, but through the fiber, loop-back and continuous link testing function can be realized.
FiberMix 002-16 supports redundant, load sharing and hot-swappable power supply. The application provides a cost-effective solution for carriers.
|
Back to Top
|
|
|
|
| FiberMix 303-GE-S1 |
Module, 1000Mbps ETH converter, SNMP-management, SSF, Dual WL 1310nmTX 1550nmRX, 0~25km, RJ45/SC-PC |
| FiberMix 304-GE-S1 |
Module, 1000Mbps ETH converter, SNMP-management, SSF, Dual WL 1550nmTX 1310nmRX, 0~25km, RJ45/SC-PC |
|
|
