FiberMix 905-EE1 Standalone 10Mbps on Transparent or Fractional E1 Converter

FiberMix 905-EE1

Standalone 10Mbps on Transparent or Fractional E1 Converter

Specification | Front panel | Application | Ordering information

FiberMix 905 and FiberMix 906 offer easy connections of LANs/MANs at transmission rates N × 64k (N=1~31) via copper lines and shall be used in pair. With this solution, standard E1 systems may be fully and extensively utilized for local LANs/MANs. They can be integrated easily with previously setup networks. It is a flexible solution with a broad functional range, allowing for the conversion of Ethernet-formatted data into standard formats at data transmission rates within range of E1. Features like auto-negotiation and auto-crossing guarantee easy installation and low maintenance efforts.

User's manual
204 Kb

Quick start

•

Cost-effective Ethernet to E1 or fractional E1 conversion

•

Connect LAN/MAN via existing TDM networks

•

Available as slide-in module or as standalone unit

•

The slide-in module can be plugged in FiberMix 001 -1, FiberMix 001/002-4 or FiberMix 002-16 chassis

•

SNMP management

•

Completed alarm message, analysis and alarm capability for faults in E1 link are provided; the fault point can be easily detected and located

•

Fault Pass Through (FPT) function diverts the alarms from receiving and transmitting side of E1 to Ethernet interface and reports to Switch

•

FiberMix 905 offer easy connections of LANs/MANs at transmission rates N*64k (N=1~31) via copper lines and shall be used in pair. With this solution, standard E1 systems may be fully and extensively utilized for local LANs/MANs. They can be integrated easily with previously setup networks

•

It is a flexible solution with a broad functional range, allowing for the conversion of Ethernet-formatted data into standard formats at data transmission rates within range of E1. Features like auto-negotiation and auto-crossing guarantee easy installation and low maintenance efforts.

E1 Interface
	Bit Rate: 2048kbps±50ppm
	Line Code: HDB3
	Input Impedance: 75ohm (unbalanced BNC connector) 120ohm (balanced RJ45 connector)
	Electrical Characteristics:ITU-T G.703
	Frame Structure: ITU-T G.704
	Jitter Performance: ITU-T G.823

Ethernet Interface
	Compliant to IEEE 802.3 standard 10BaseTx Ethernet port (RJ45) Supports Ethernet data frame up to 1595 bytes.
	Modular units can be hot-swapped, with high reliability
	Standalone units provide built-in power supply

Dimensions
	standalone unit: 120(W)39(H)156(D) (mm)
	modular unit: 91(W)25(H)155(D) (mm)

Power
	Supply: 115/230VAC -48DC
	Consumption: 3W

Environment
	0~45 degrees Centigrade operating less than 90% humidity (25 degrees Centigrade)

Compliance
	CE certification

Front panel FiberMix 905-EE1 Standalone 10Mbps on Transparent or Fractional E1 Converter

Application FiberMix 905-EE1 Standalone 10Mbps on Transparent or Fractional E1 Converter

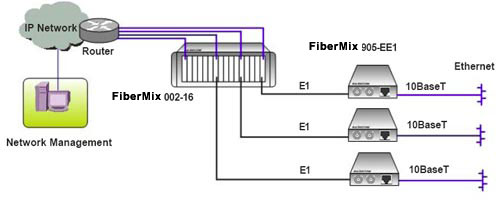

Point to multipoint application. Modular unit FiberMix 906-EE1 is installed in FiberMix 002-16 16-slot chassis at central site. Standalone unit FiberMix 905-EE1 is placed customer site. The application extends 10BaseT over transparent or fractional E1, and provides two clock modes: master clock and slave clock. FiberMix 906-EE1 has carrier-grade network management capability, At central site, administrator can dispose and control modular units through network management platform, for instance: working mode of RJ45 port, enable or disable E1 link, loop-back test, and reset all RJ45 ports. FiberMix 905-EE1 has remote network management capability, the working mode of RJ45 and loop-back test also can be configured. FiberMix 002-16 chassis supports redundant, load sharing and hot-swappable power supply. The application provides a cost-effective solution.
