DYNAMIX UM-A4/PL
ADSL router (8 Mbps / 1 Mbps) with 4 port switch and Powerline interface
Specification | Back panel | Application | Ordering information
DYNAMIX UM-A4/PL - ADSL Router With 4 port Switch and Powerline interface

View Larger Picture

 DYNAMIX UM-A4/PL is a HomePlug built-in ADSL router integrating with 4 ports 10/100 Mbps Fast Ethernet Switch for multiple users and one WAN port for ADSL line connection. It is a cost saving HomePlug built-in ADSL Router which operates on existing home electric wiring end specially designed for residential, industries and SOHO environments.  User's manual

Quick start

• HomePlug 1.0 compliant
• Support ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT) and ITU-T G.992.2 (G.LITE) Annex A, B, B(U-R2) ADSL Standard
• Downstream and Upstream data rates up to 8Mbps and 1Mbps
• Built-in Intellon's INT51X1 HomePlug Module (Super SIP)
• Operates on existing Home Electric Wiring
• HomePlug Data transmission rate up to 14Mbps
• Built-in QoS and Error Correction features
• 56-bit DES Link Encryption with key management for secure power-line communications
• Four-10/100Mbps Switch Port for LAN connection
• Compliant with IEEE 802.3/802.3u and auto-negotiation
• Support Full-duplex 802.3 flow control
• Hardware reset button for fast default setting recovery.
• HTTP Web-based configuration/management
• LED indicator indicates connection status
Back to Top

ADSL
 G.992.1 (G.DMT): Downstream and Upstream data rates up to 8Mbps and 1Mbps
  G.992.2 (G.Lite): Downstream and Upstream data rates up to 1.5Mbps and 512Kbps

ATM
 WAN Mode Support: PPP Over ATM (RFC2364) and PPP Over Ethernet (RFC 2516)
  LAN Mode Support: Routed/Bridge Ethernet Over ATM (RFC 1483)
  Classical Internet Protocol Over ATM (RFC 1577)
  Support ATM SAR, ATM AAL5, ATM Forum UNI3.1/4.0 PVC and support up to 8 PVC

SWITCH
 4 Port 10/100Mbps Switch Interface compliant with IEEE 802.3x standard
  10/100 Mbps Half/Full Duplex mode
  Automatic MDI/MDIX crossover for 10/100 Base-T port
  Auto-negotiation and speed-auto-sensing support
  Extra high performance on up to 100 meters CAT5 UTP cable
  Back-Pressure-Based flow control on Half Duplex mode
  Pause-Frame-Based flow control on Full Duplex mode
  Store-and-Forward switching mode
  High performance lookup engine with support of up to 4096 MAC address entries with automatic learning and agin

BRIDGE
 Ethernet to ADSL Self-Learning Transparent Bridging (IEEE 802.1D)
  Supports up to 16 MAC Learning Addresses

ROUTER
 IP routing-RIPv2
  Static routing
  DHCP (Dynamic Host Configuration Protocol) Server and Client.
  NAT (Network Address Translation)
  ICMP (Internet Control Message Protocol)

SECURITY
 User authentication for PPP
  PAP (Password Authentication Protocol), CHAP (Challenge Authentication Protocol)
  Password protected system managemen

HOMEPLUG
 HomePlug 1.0 standard compliant
  Support Data Rates up to 14Mbps
  Support 56-bit DES Link Encryption with key management for secure power-line communications

HARDWARE INTERFACE
 1* RJ-11 port for ADSL Line connection
  4* RJ-45 jack for LAN connection
  Reset Button for default setting
  power jack for 5V/1.5A DC power connection

APPROVAL
 FCC Part 15 / CE

Back to Top

Back panel DYNAMIX UM-A4/PL - ADSL Router With 4 port Switch and Powerline interface
Back to Top

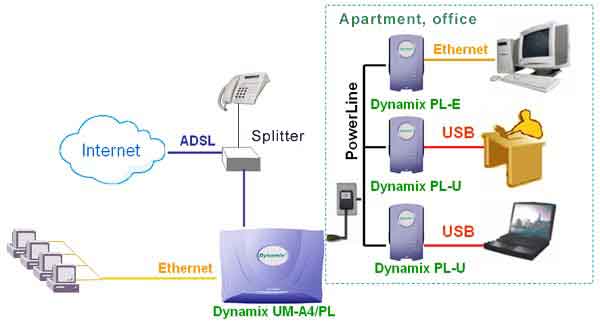

Application DYNAMIX UM-A4/PL - ADSL Router With 4 port Switch and Powerline interface

Back to Top
 DYNAMIX UM-A4/PL ADSL router (8 Mbps / 1 Mbps) with 4 port switch and Powerline interface
Back to Top
