DYNAMIX UM-SE
|
| 2BASE-TL EFM Network Extender |
|
|
|
|
|
View Larger Picture
|
DYNAMIX UM-SE - series is the EFM Based Network Extender which provides a flexible and friendly solution for the
Ethernet based services provision to subscribers by the service provider. Additionally, this family of products provides a

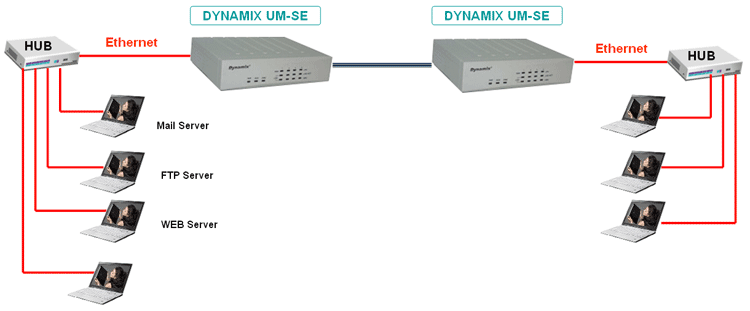

simple way in a back-to-back deployment to provide point to point configuration. This allows broadband service providers to
deploy single DSL lines economically when required for low density geographical areas or during start up phase.
DYNAMIX UM-SE series provides cost-effectively symmetrical bandwidth at rates up to 22.8 Mbps which allows service
providers to deliver friendly Ethernet services rapidly. DYNAMIX UM-SE series extends the reach of Ethernet services to the
sites with no fiber access to by using bonded copper pairs. Designed with standard-based EFM technology (2BASE-TL), the
delivery of Ethernet services with DYNAMIX UM-SE can be deployed quickly on the existing copper plant. It is a nice
application for back-to-back connection between remote office and enterprise headquarters
|
User's manual
1.3
Quick start
|
DYNAMIX UM-SE series implements the management features based on IEEE 802.3ah standard and it enables users to
significantly reduce operation expense by eliminating unnecessary transformation between Ethernet and legacy ATM
network.
With a compact form-factor design and optimization for the use over existing copper
network, DYNAMIX UM-SE series reduces the initial investment cost and deployment time in delivering higher speed Ethernet
service. It provides minimized risk bearing and quick return on investment to service providers and enterprises.
DYNAMIX UM-SE LAN port is interoperable with any standard Fast Ethernet interfaces from
switches, routers, and NSG-SONET/SDH Equipment. DYNAMIX UM-SE management interfaces include comprehensive command-line interface
(CLI), user-friendly GUI-based Web Browser Interface, SNMP and Telnet.
DYNAMIX UM-SE series can bond up to 4 pairs and deliver up to 22.8 Mbps Ethernet services to all users within their
service area by utilizing existing copper infrastructure and EFM 802.3ah
bonding
technology. Service Providers and enterprises are able to offer symmetrical high speed connectivity for transparent Ethernet service on DSLAM
backhaul, Wireless backhaul, and more.
DYNAMIX UM-SE Series provides future-proof features meeting Ethernet Quality of Service
(QoS) and Class of Service (CoS) requirements by utilizing 802.1q VLAN capabilities, four levels of
priorities, traffic flow control and rate control. This traffic management and QoS features enable service providers to offer highly profitable and value-added services to a
vast majority of business and institutional sites.
|
|
|
|
| • |
Extending Ethernet Services to
sites with existing copper infrastructure |
| • |
Increased Flexibility in
Deployment |
| • |
Lower Investment and Quick
Return on Investment |
| • |
EFM Bonding (PAF, PME
Aggregation Function) up to 22.8Mbps (4 pairs) |
| • |
Support EFM OAM complying IEEE
802.3ah |
| • |
Flexible configuration as CPE
or CO |
| • |
Low Delay, Jitter and Packet
Loss for delay sensitive application |
| • |
Comprehensive and easy OAM
& P functions in provisioning and managing |
| • |
QoS feature for guaranteed
Ethernet srvice |
| • |
Future-proof Ethernet traffic
management and QoS features |
 Back to Top
|
|
|
|
|
| Network Interface:
LAN |
| | 4 X 10/100BASE-T Ports (RJ45) |
| | Auto MDI/MDI-X |
| Network Interface:
WAN |
| | ITU-T G.991.2.(2004) 2BASE-TL, 64/65o encoding |
| | EFM bonding (IEEE 802.3ah
PAF) |
| | RJ45 Connector |
| | Max 22.8Mbps
(5.7Mbps/Port) |
| LAN Protocols |
| | 802.1d Transparent Bridging |
| | Up to 2K MAC Address |
| Indicators |
| | LAN : Link/Act, 10/100 per port |
| | WAN: Link/Activity per loop |
| | System: Power,
Alarm, Diagnostic |
| Management Interface |
| | In- Band
- EFM (IEEE 802.3ah) OAM
- Web Browser(HTTP), SNMP, Telnet |
| | Out-Band
- Console (RS-232, RJ-45): CLI (menu driven)
- Management Port (Ethernet, RJ-45): Web Browser(HTTP), SNMP, Telnet |
| VLAN Support |
| | Port-bases & Tag-based (802.1Q) |
| | Up to 16 VLANs |
| | Priority Re-mapping |
| | VLAN Trunk mode |
| QoS Support |
| | Ingress Rate control |
| | Egress Traffic Shaping |
| | Classification based on
Port / 802.1p/DSCP |
| | 4 Priority Queues |
| | Strict Priority |
| | Simple WFQ (Weighted Fair
Queue) |
| Environment |
| | Operating Temperature:
0°C ~ +50°C |
| | Storage
Temperature: -40°C ~ +85°C |
| | Relative
Humidity: 98%, non-condensing |
| Mechanical & Power Requirement |
| | Dimension (mm): 195 x 48 x 168 |
| | 90~240VAC with 50~60Hz |
| | DC 9V 1.0A (External
adaptor) |
|
|
Back to Top
|
|
|
|
|
|
|
|
|
|
| DYNAMIX UM-SE |
1-pair 2BASE-TL EFM Network Extender |
| DYNAMIX UM-SE2 |
2-pair 2BASE-TL EFM Network Extender |
| DYNAMIX UM-SE4 |
4-pair 2BASE-TL EFM Network Extender |
|
|
