The Virtual Server Configuration allows you to set the configuration of the Virtual Server. All
UDP/TCP ports are protected from intrusion. If any specific local PCs need to be mapped to the UDP/TCP
port on WAN side, please input the mappings here.
There can be up to 20 different Virtual Server Configurations.
1. Power on your Dynamix UM-A ADSL modem/router.
2. Launch the Web browser (Internet Explorer, Netscape, etc.).
3. Enter the LAN port default IP address ( Default Gateway ) http://10.0.0.2 in the address bar.
4. Entry of the username and password will be prompted. Enter the default login
“User Name” and “Password”:
The default login User Name of the administrator is “admin”, and the default login Password is
“epicrouter”.
The default login User Name for the non-administrator is “user”, and the default login Password is
“password”.

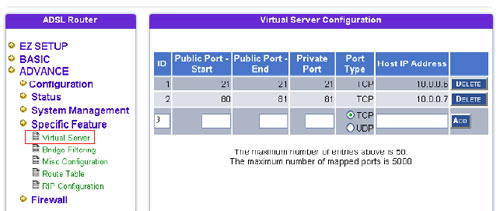

5. Enter in “Advance” and chose in submenu “Specific Feature” the option
“Virtual Server”
For example:
«Public Port - Start» - 20,
«Public Port - End» - 21,
«Private Port» - 21,
«Port Type» - TCP]
«Host IP Adress» - 10.0.0.1.
The maximum number of Port is 50.
More information about Dynamix UM-A (1 LAN) ADSL modem/router can you find :
http://www.godynamix.com/support/doc/adsl/um_a_1l.htm
|
