The applied

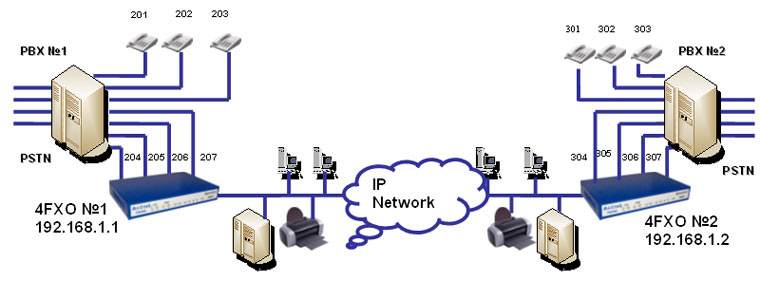

equipment: Dynamix DW 4 FXO/S
|
|
|
Configuration of VoIP gateway with IP-Address – 192.168.1.1 (4FXO)
$ flash –clean
$ ifaddr -ip 192.168.1.1 -mask 255.255.255.0 -gate 192.168.1.254
$ h323 -mode 1
$ h323 -line1 501 -line2 502 -line3 503 -line4 504
$ line -config 1 hotline 801
$ line -config 2 hotline 802
$ line -config 3 hotline 803
$ line -config 4 hotline 804
$ pbook -add name FXO_2 ip 192.168.1.2 e164 8
$ commit
$ reboot
Configuration of VoIP gateway with IP-Address – 192.168.1.2 (4FXO)
$ flash –clean
$ ifaddr -ip 192.168.1.2 -mask 255.255.255.0 -gate 192.168.1.254
$ h323 -mode 1
$ h323 -line1 801 -line2 802 -line3 803 -line4 804
$ line -config 1 hotline 501
$ line -config 2 hotline 502
$ line -config 3 hotline 503
$ line -config 4 hotline 504
$ pbook -add name FXO_1 ip 192.168.1.1 e164 5
$ commit
$ reboot
If the user want to inplement one-stage dialing in FXO Line, this function must be enabled, and user has to dial prefix number (instead of Line number of FXO Line) + PSTN number to make a call to PSTN side connected with FXO
Line.
Disconnect tone and remote ring back tone configuration:
$ tone 1 425 425 8 8 30 30 30 30
FAX T.38 – enable this function to support the FAX function:
$ support –t38 1 –t38ecm 0 –faxrdd 2 –fstart 1 –tunnel 1 –h245fs 1
|
| |
| |
|
