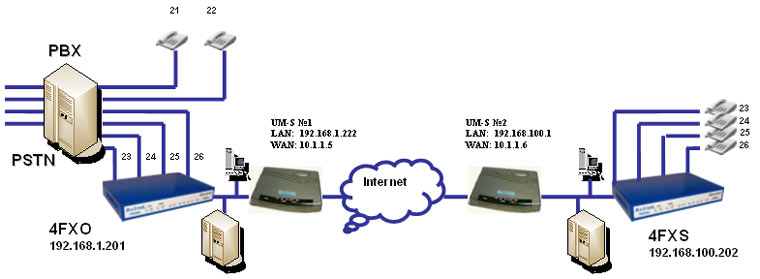

Configuration of connection for Phone Line( Peer-to-Peer + Hotline) on DSL line for
Dynamix UM-S via NAT






1. Configuration of VoIP equipment:

The general configuration of VoIP Gateway with IP-Address 192.168.100.202 (4FXS)


usr/config$ flash –clean

usr/config$ ifaddr -ip 192.168.100.202 -mask 255.255.255.0 -gate 192.168.100.1
usr/config$ h323 -mode 1
usr/config$ h323 -line1 501 -line2 502 -line3 503 -line4 504
usr/config$ line -config 1 hotline 801
usr/config$ line -config 2 hotline 802
usr/config$ line -config 3 hotline 803
usr/config$ line -config 4 hotline 804
usr/config$ pbook -add name 801 ip 192.168.1.201 e164 801
usr/config$ pbook -add name 802 ip 192.168.1.201 e164 802
usr/config$ pbook -add name 803 ip 192.168.1.201 e164 803
usr/config$ pbook -add name 804 ip 192.168.1.201 e164 804
usr/config$ ifaddr –ipsharing 1 10.1.1.6
usr/config$ sysconf -keypad 0
usr/config$ support –fstart 1
usr/config$ support –tunnel 1
usr/config$ commit
usr/config$ reboot

The general configuration of VoIP Gateway with IP-Address 192.168.100.201 (4FXO)

usr/config$ flash –clean
usr/config$ ifaddr -ip 192.168.1.201 -mask 255.255.255.0 -gate 192.168.1.222

usr/config$ h323 -mode 1
usr/config$ h323 -line1 801 -line2 802 -line3 803 -line4 804
usr/config$ line -config 1 hotline 501
usr/config$ line -config 2 hotline 502
usr/config$ line -config 3 hotline 503
usr/config$ line -config 4 hotline 504
usr/config$ pbook -add name 501 ip 10.1.1.6 e164 501
usr/config$ pbook -add name 502 ip 10.1.1.6 e164 502
usr/config$ pbook -add name 503 ip 10.1.1.6 e164 503
usr/config$ pbook -add name 504 ip 10.1.1.6 e164 504
usr/config$ sysconf -keypad 0
usr/config$ support –fstart 1
usr/config$ support –tunnel 1
usr/config$ commit

usr/config$ reboot

Telephone Number up 23 to 26 is for destination’s IP Address

2. Configuration of Dynamix UM-S Nr. 2 G.SHDSL modem/router:

NAT/DMZ Function: - Enable
Lan IP Address - 192.168.100.1
WAN IP Address - 10.1.1.6
Default Gateway - 10.1.1.5

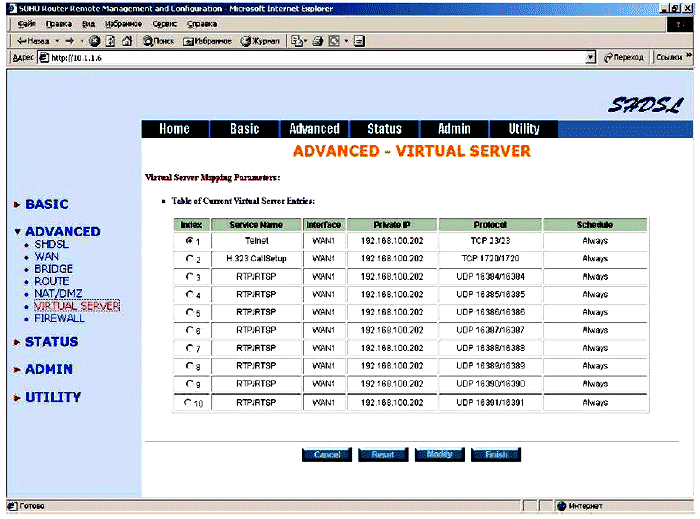

You must add Virtual Server Mapping Parameters:


In general case the VoIP Gateway use the following ports:
TCP port:
1025: Q.931/H.225 gatekeeper mode
1027: H.245
1045: H.245
1502: T.120
1718: Gatekeeper discovery
1720: H.323 Call Setup
1731: Audio Call Control

UDP port:
1024: RAS
1719: Gatekeeper RAS
16384 ~16479: RTP/RTCP


For Hotline example on 4-ports unit you must open the following ports:

TCP port 1720 H.323 Call Setup
UDP ports 16384~16391 For 2 port of each Lines , for voice transfer
TCP port 23 For access to DW-04/H Gateway via Telnet

  Thus, on one IP Address 10.1.1.6  we get access via WEB on UM-S, and via Telnet on Dynamix DW FXS – 04/H
