Connection of the AMTs to the bank branch on the dedicated lines with using of SHDSL concentrators
(DSLAM).
|
With sharp growth of amount of payments with the use of plastic cards, there is a necessity of connecting of ATMs to the bank branches or central bank. At distance an about 5-7 km to the bank (usually districts ATMs are connected to the district bank branch ) is possible to use of SHDSL technology.
The environment of data transmission is the copper dedicated line (own or leased).
For the less 3-4 ATMs is optimal to use for connection in the branches bank - SHDSL modems/router.

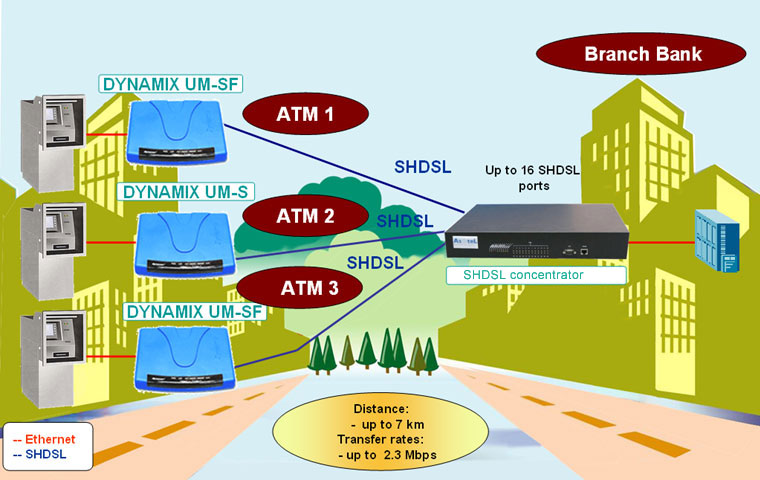

For more than 3-4 ATMs is optimal to use for connection in the bank branches - SHDSL concentrators (DSLAM), what is considered on an example below.
|
| |
In this case in the ATM can be
created:
|
1. DYNAMIX UM-S SHDSL
modem/router (See on a picture
ATM 2).
This device has one Ethernet port and allows to connect the ATM with dedicated line to bank concentrator. By using this device you have a high protection that it is internal network and can not be damaged from hackers.
2. DYNAMIX UM-S4 SHDSL
modem/router (See on a picture ATM 1, 3).
This device has one Ethernet port, that sufficiently for connecting of ATM on the dedicated line to bank concentrator . . By using this device you have a high protection that it is internal network and can
not be damaged from hackers.
But for protection of investments, in possible for transmission the connection of ATMs to Internet, there is preferable to use this equipment, as it has built in functions of protection (firewall) and transparently for VPN tunnels.
|
| |
| In the branch bank can be created : |
SHDSL concentrator (DSLAM) , providing the directly concentration and exchange by information with ATMs. It is possibly also to use the similar SHDSL concentrators of other vendors.
|
| |
|
| |
