DYNAMIX DV-24 - VDSL IP DSLAM

DYNAMIX DV - 24

VDSL 24 ports IP DSLAM

Specification | Front panel | Back panel| Application | Ordering information

   The DYNAMIX DV - 24 is a VDSL IP DSLAM that aggregates 24 lines of 4-band Very-High-Data-Rate Digital Subscriber Line (VDSL) into Giga Ethernet uplinks for high-speed data/Internet services.
   Based on QAM-based 4-band VDSL technologies, DYNAMIX DV - 24 extends data service with line rate of solution for services such as remote lecturing, telemedicine, video conferencing, Video-on-Demand (VoD), IP-TV etc. Internet access, and other various high-speed data applications.

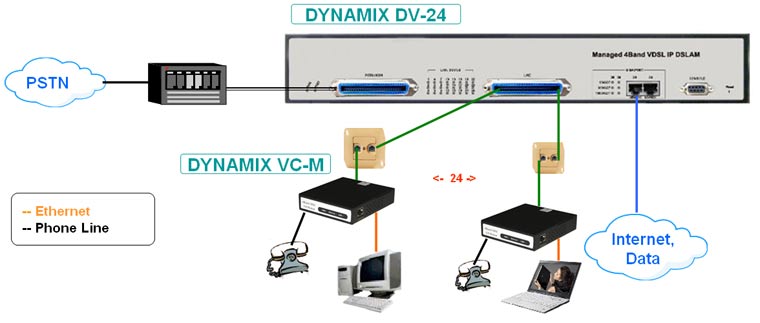

   When the number of subscribers increases, the second uplink fast Ethernet interface can be used to daisy chain to another DYNAMIX DV - 24. Alternatively, multiple DYNAMIX DV - 24 can be connected to another LAN switch to form a two-tier configuration, thus supporting a lot more subscribers.
   The DYNAMIX DV - 24 is an ideal solution for delivering cost-effective, high-performance broadband/multimedia services to Multi-Tenant Units (MTUs) or Multi-Dwelling Units (MDUs) such as hotels, campus, hospitals and telecom.

User's manual
1.3 Mb

Quick start

•

Supports bandwidth management (speed rate control) from 100K to 5M/15M/25Mbps for VDSL port with long driver capable up to 1.7 / 1.1 / 0.6 Km

•

Supports GARP/GVRP IEEE-802.1p/q tagging VLAN, IEEE 802.1v protocol VLAN, port base VLAN

•

Supports quality of phone wiring detected with SNR (Signal to Noise Ratio) indications

•

Supports QOS IEEE-802.1p

•

Supports IGMP V2 snooping, BOOTP/DHCP Client, bandwidth control

•

Supports LACP IEEE-802.3ad Port Trunking

•

Supports IEEE 802.1d Spanning Trees

•

Supports Port Mirroring (Sniffer) and Broadcast Storm filtering

•

Supports 802.1x Port Based Network Access Control

•

Supports Web Base and Telnet for remote management

•

Supports SNMP v1 RFC-1493 Bridge MIBs, RFC-1643 Ethernet MIB, RFC-1213 MIB II, Enterprise MIB

•

Supports RMON groups 1, 2, 3, 9 (RFC-1757 RMON MIB)

•

Supports TFTP/XMODEM for firmware upgrade

•

Supports In-Band/Out-of-Band Management

•

Supports RS-232 console port for functions setup (DB-9Pin Female / 9600bps)

•

Spectral compatibility with XDSL, ISDN (2B1Q/4B3T), HomePNA)

•

Support VDSL CPE modem: DYNAMIX VC - S and DYNAMIX VC -S4

•

Supports IEEE802.3, IEEE802.3u,IEEE802.3ab Standards.

Standards
	IEEE802.3 standard
	IEEE802.3u standard
	IEEE802.3ab standard
	Compliant with ETSI, ITU, ANSI standards

Interface
	2 * RJ-45 10/100/1000Mbps Ethernet port
	24 * RJ-21 connector for VDSL connection
	24 * RJ-21 connector for POTS/ISDN connection

Flow control
	Full duplex: IEEE 802.3x
	Half duplex: Back pressure

MAC address table
	6K Entries

VDSL Frequency Spectrum
	Transmitter: 900 kHz ~ 3.9MHz
	Receiver: 4MHz & 7.9MHz

POTS/ISDN pass filter Spectrum
	0 ~ 630kHz

LEDs
	Power and POST
	Link/Active/Speed/Duplex Status for Ethernet port
	Link for VDSL port

Physical & Environmental
	Operating Temperature : 0°C ~ 50°C(41F ~ 122F)
	Storage Temperature : - 20°C ~ 65°C(-4F ~ 149F)
	Humidity: 10%~90% non-condensing
	Dimensions: 434 x 299 x 66 mm

Вверх

DYNAMIX DV- 24

VDSL IP DSLAM (24 ports VDSL, 2 x 10/100/1000Mbps Ethernet, 25 Mbps)
