DYNAMIX VC2-M/S - VDSL2 modem

DYNAMIX VC2 - M/S

VDSL2 modem - router

Specification | Front panel | Back panel | Application | Ordering information

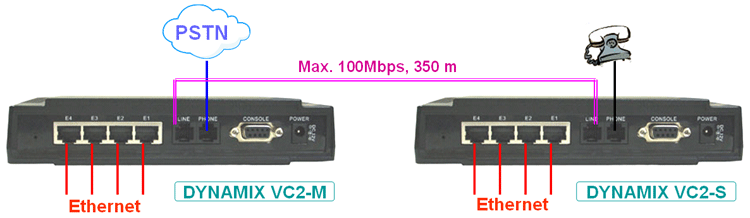

Dynamix VC2 M/S is a VDSL2 Modems - router leverages the extraordinary bandwidth promise of VDSL2 (max. 100Mbps Symmetric) technology, the next step in the delivery of new high-speed Internet applications to end-users in their homes or offices. Quick, easy and economical to install and maintain, the Dynamix VC2-M works with the Dynamix VC2-S over existing copper wire infrastructure. Dynamix VC2-M is a CO (Central Office) device.

VDSL2 will allow operators worldwide to compete with cable and satellite operators by offering services such as HDTV, VOD, videoconferencing, high speed Internet access and advanced voice services including VoIP, over a standard copper telephone cable.

VDSL2 is seen by many operators as an ideal accompaniment to a fiber to the premises (FTTP) rollout, where for instance fiber is supplied direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

User's manual

Quick start

•

Compliant with IEEE 802.3 & 802.3u Ethernet Standards

•

Compliant with ETSI, ITU, ANSI VDSL standards

•

Provides 4 x 10/100M auto-sensing RJ-45 Ethernet ports

•

POTS / ISDN Splitter port RJ-11 x 1 (Splitter on board)

•

VDSL2 RJ-11 port x 1

•

Supports Bandwidth setup with symmetric 100 Mbps VDSL RJ-11 ports

•

Supports auto speed for VDSL2 port

•

Supports Web management (HTTP) & TFTP, Console(RS232)

•

Supports PPPOE

•

Supports uPnP (Plug & Play)

•

Supports NAT/DHCP/DMZ

•

Supports Firewall

•

Supports Route & Switch mode

•

Supports Loop back

•

Supports SNR indicator for check phone wiring quality.

•

Provides surge protection for VDSL2 port

•

Switch method : store and forward, Half duplex : Back pressure

•

Driver capable : symmetric up to 100 Mbps up to 1,5 Km

•

EMI Compliant: CE, FCC, VCCI

•

Chipset: Infineon.

Standards
	Compliant with IEEE 802.3 & 802.3u Ethernet Standards
	Compliant with ETSI, ITU, ANSI VDSL standards

LAN
	Compliant with IEEE 802.3 & 802.3u Ethernet Standards
	Provides 4 x 10/100M auto-sensing RJ-45 Ethernet ports
	Supports PPPOE
	Switch method : store and forward, Half duplex : Back pressure
	Supports Route & Switch mode

VDSL Features
	Supports Bandwidth setup with symmetric 100 Mbps VDSL RJ-11 ports
	Provides surge protection for VDSL2 port
	Supports auto speed for VDSL2 port
	Supports Bandwidth setup with symmetric 100 Mbps VDSL RJ-11 ports
	VDSL2 RJ-11 port x 1

POTS/ISDN
	POTS / ISDN Splitter port RJ-11 x 1 (Splitter on board)

LEDs
	Power LED x1
	Ethernet Link/Active LED x 4
	VDSL Link LED x 1

Physical & Environmental
	Operating temperature: 0°C to 50°C (32 to 122F)
	Storage temperature: -20 to 65°C (-4F to 149F)
	Operating humidity: 10% to 90% (non-condensing)
	Dimension: L x W x H = 184mm x 146mm x 40mm(7.2" x 5.74" x 1.57")
	Power consumption : 7.5w
	AC-to-DCadapter: Input range: 100VAC~240VAC/50~60Hz, Output: 12VDC/1A

Вверх

DYNAMIX VC2- M/S

VDSL2 modem - router (distance up to 1,5 km, transfer rate up to 100 Mbps) 4LAN
